Description
Pallet Spec or View full product spec PDF

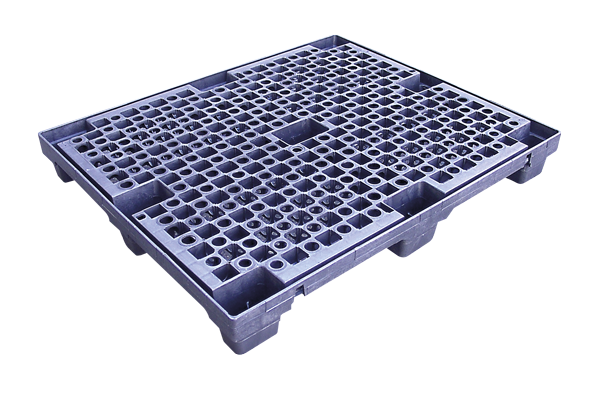

The pallet has a reticular structure with excellent mechanical characteristics and a perimetric groove for housing the sleeve.
| Product code / Ref: | BCLP800 |
| Size: | (L) 1200 mm (W) 800 mm (H) 133 mm |
| Weight: | 12 kg |
| Material: | PP |
| Colour/s: | Black |
| Dynamic load: | 1500 kg |
| Static load: | 3000 kg |
| Racking load: | – |
| Perimetrical groove: | Yes |
| Packing per stack: | 34 |
| Other info: | Runners (optional) |

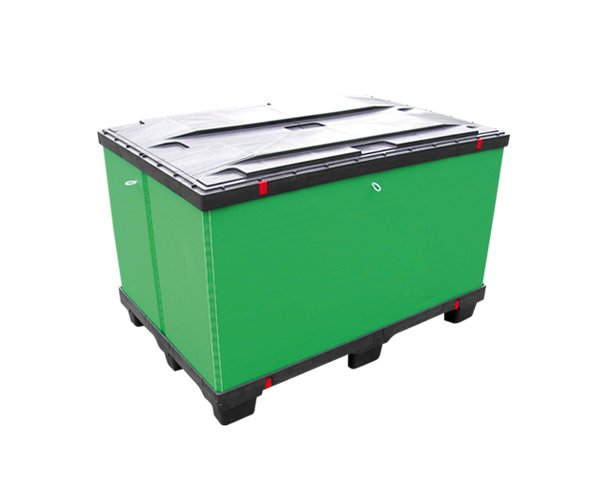

Sleeve spec
Made with a rimmed contour to prevent injuries and on request can be fitted to the pallet and the lid with 8 hooks.
| Product code / Ref: | BCLS0800 |
| Size: | (L) 1200 mm (W) 800 mm |
| Internal dimensions: | (L) 1163 mm (W) 763 mm |
| Belt height: | Minimum 390 mm / maximum 1198 mm |
| Thickness: | From minimum 5mm to maximum 10 mm |
| Thickness: | Minimum 8.5 mm / maximum 10 mm |
| Density: | Minimum 1.5kg/m2 to maximum 3kg/m2 |
| Material: | PP |
| Colour: | On demand according to quantities (minimum 1000kg) |
| Other info: | Foldable door on one or two sides (optional) Option to fix belt to pallet and lid with 8 hooks Rimmed contour Foldable |

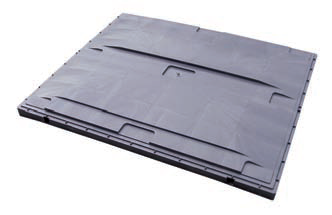

Lid spec
The upper part of the lid is made with a special structure to allow the stacking of the boxes.
| Product code / Ref: | BCLL0850 |
| Size: | (L) 1200 mm (W) 800 mm |
| Weight: | 7.15 kg |
| Material: | PP |
| Colour/s: | Anthracite grey |
| Other info: | Upper part of lid made with special structure to allow stacking of boxes Pull rings (optional) |
